Aten HDMI HDBaseT-Lite Receiver, supports 1080p @ 70m and 4096 x 2160 @ 30 HZ (4:4:4) @ 40m over Cat 6A

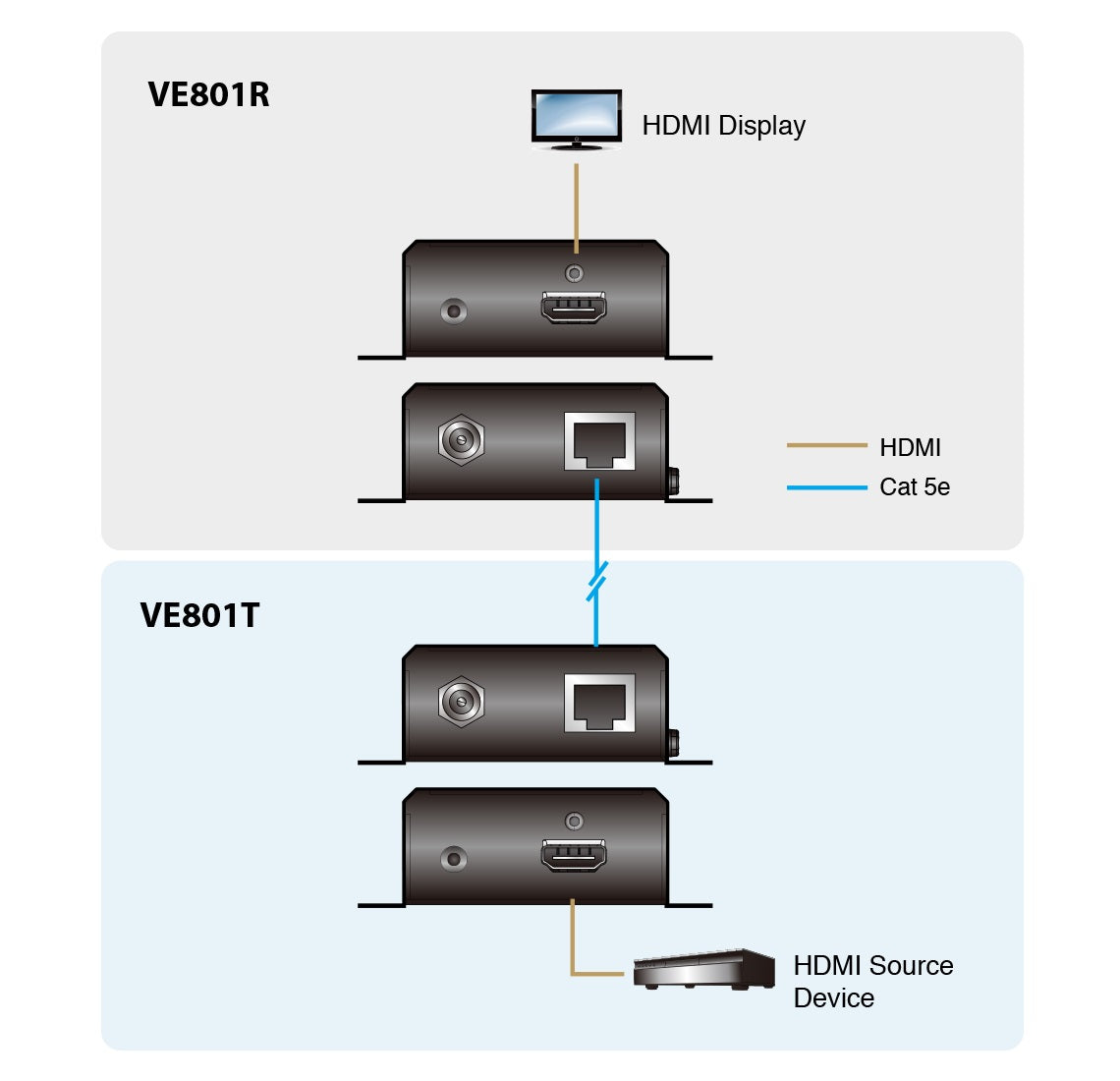

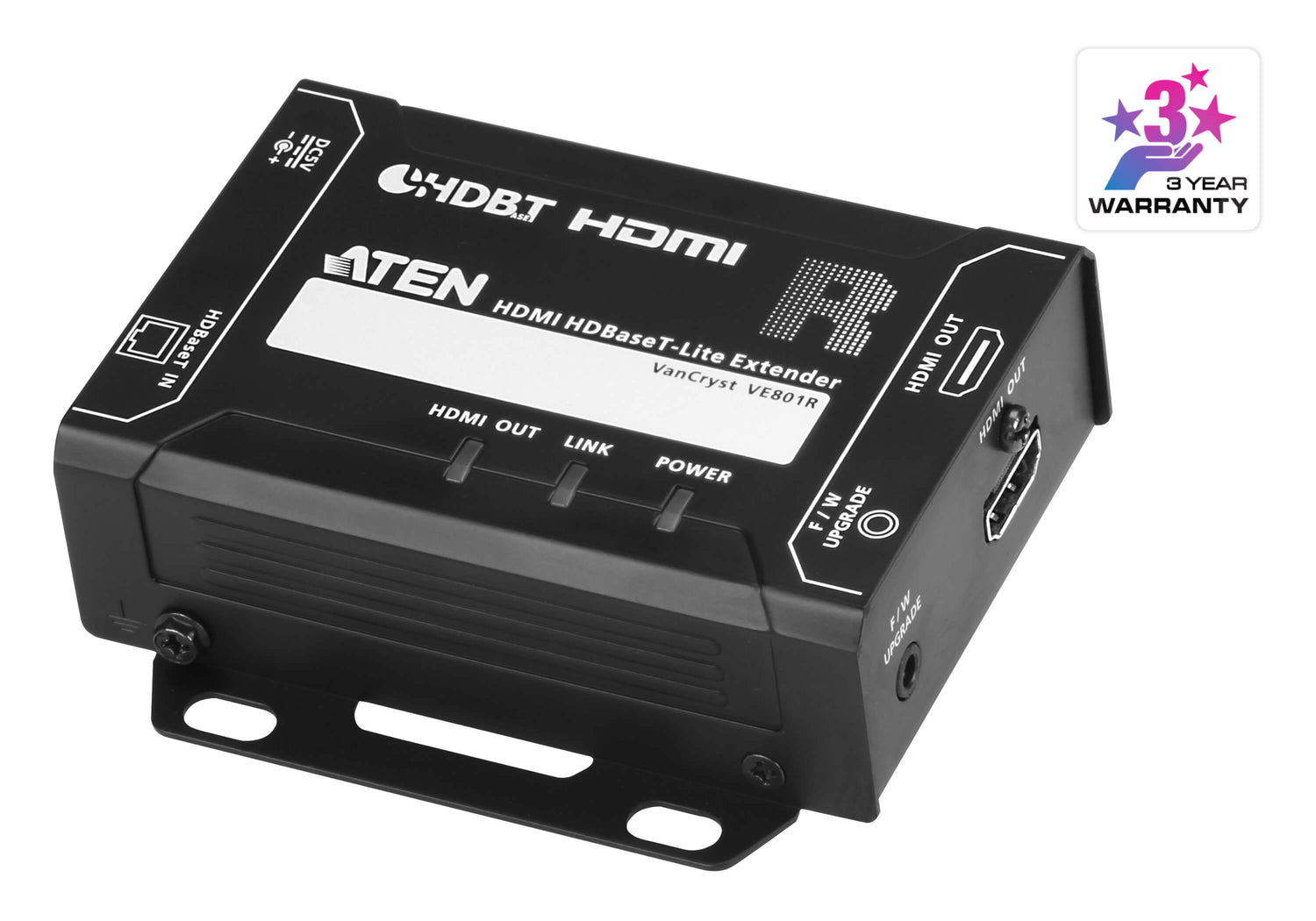

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Plug-and-play
Rack-mountable

Video Output
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100Ω
Max. Distance 3 m

Video
Max. Data Rate 10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio
Output 1 x HDMI Type A Female (Black)

Connectors
Power 1 x DC Jack (Black) with locking
Unit To Unit 1 x RJ-45 Female
Power Consumption DC5V:4.24W:20BTU

Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing

Physical Properties
Housing Metal
