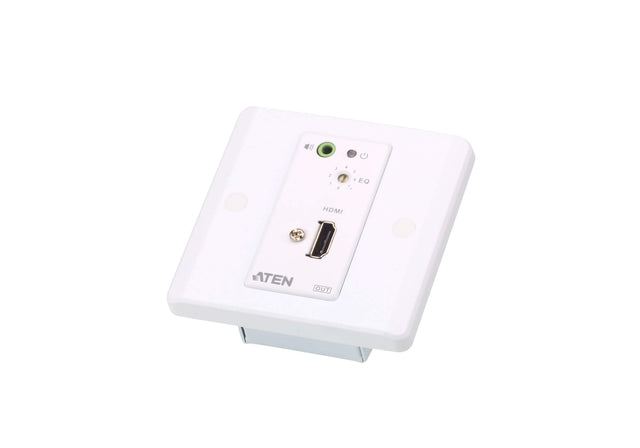

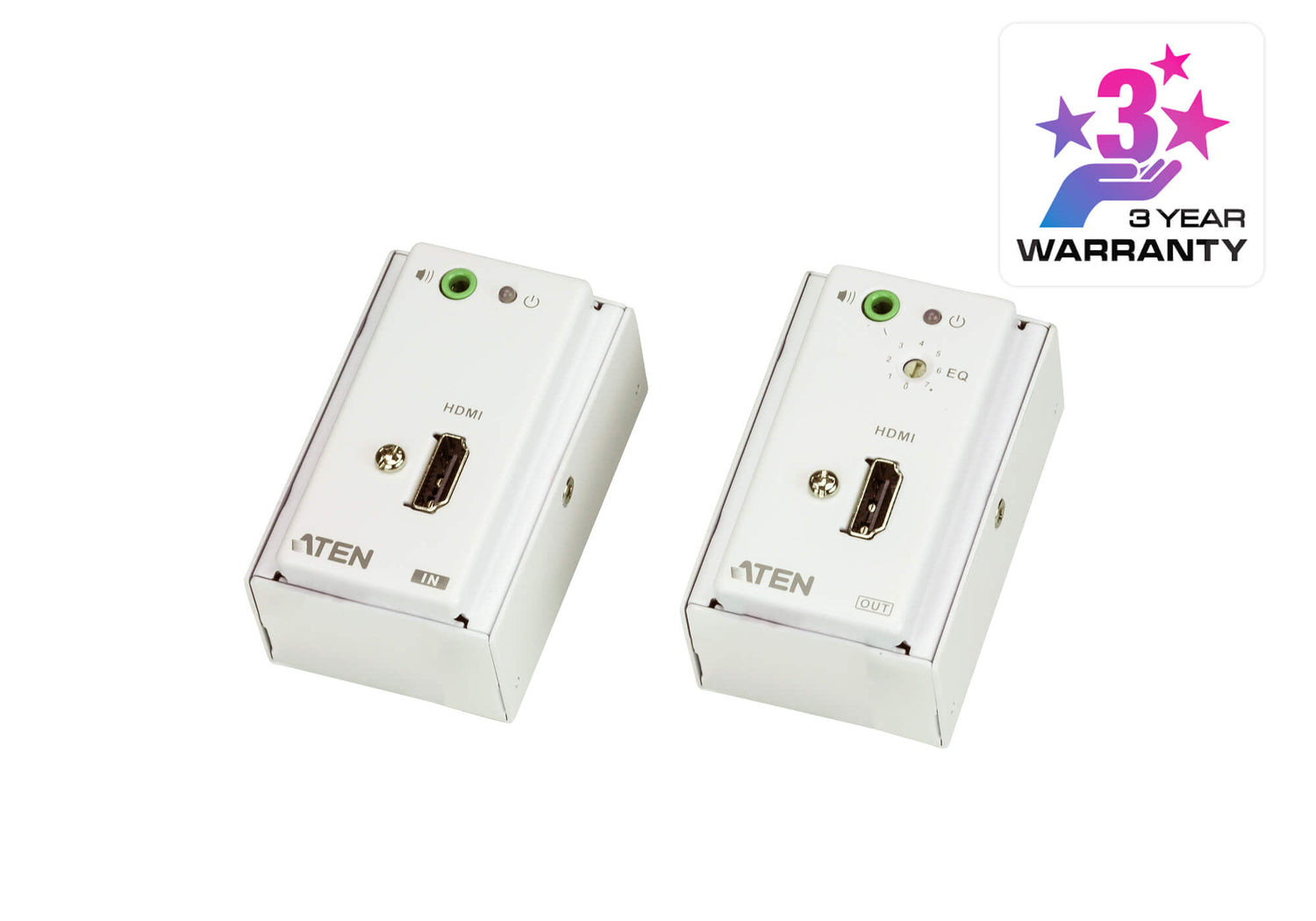

Aten HDMI Over 2 Cat 5 Extender with MK Wall Plate, supports up to 1080p @ 40m, 8-segment equalization adjustment switch

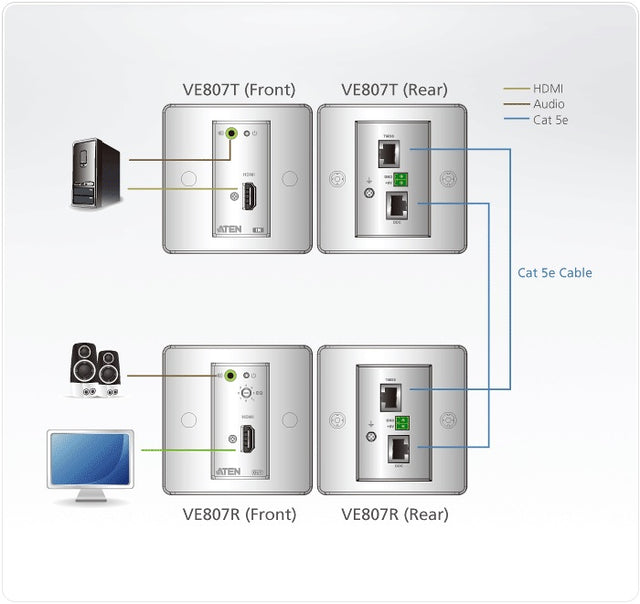

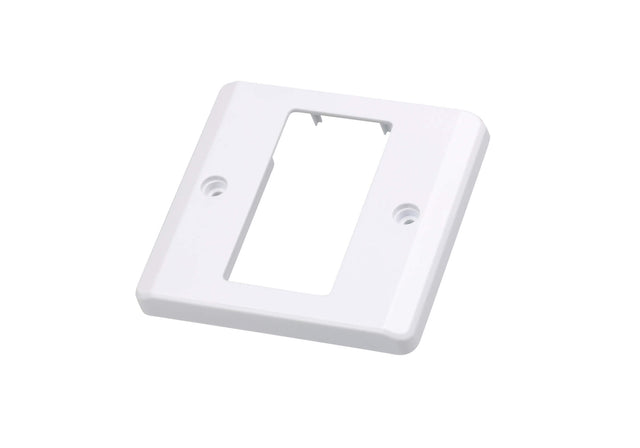

The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality. Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m

VE807R VE807T

Video
Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color) HDCP Compatible
Max. Resolutions / Distance Up to 1080p@40m; 1080i@60m

Audio 1 x HDMI Type A Female (Black)
Power 1 x Terminal Block (Green)

Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-Condensing

Housing Metal
