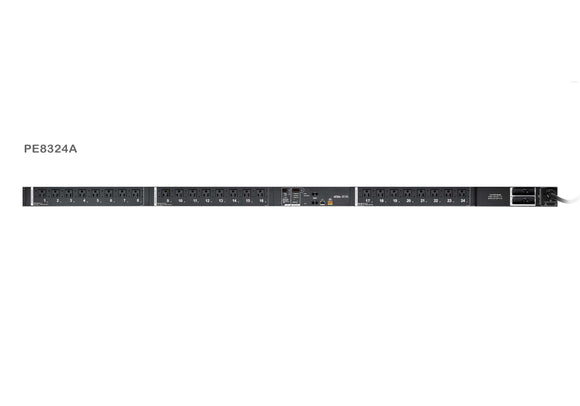

Aten 24 Port 0U eco PDU over IP - 32A Input with outlet level metering and switching feature
Aten 24 Port 0U eco PDU over IP - 32A Input with outlet level metering and switching feature
As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE8324 eco PDUs are intelligent PDUs that contain 24 AC outlets and are available in various IEC socket configurations. Models in the advanced PE8 ranges feature NRGence´s proactive overload protection, which automatically powers off the last outlet that caused the current overload.NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center´s health environment via sensors.NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection.
Connections
Support 10/100Mbit Ethernet Interface
Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIOUS
Support : eco Sensors, Browser ( IE, Firefox, Chrome, Safari )
Metering
PDU and outlet level power metering and monitoring
Environment monitoring — supports external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
Support door sensor
Outlet Switch Control
Remote power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
Outlet group support at the PDU
Supports multiple power control methods — Wake on LAN, System After AC Back, Kill the Power
Power-On sequencing — users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order
Proactive overload protection(POP) — automatically powers off the last outlet that caused the current overload
Nominal Input Voltage 100 – 120 VAC
Maximum Input Current 30A(Max); 24A(UL de-rated)
Input Frequency 50-60 Hz
Input Connection NEMA L5-30P
Input Power 3600 VA(Max); 2880 VA(UL de-rated)
Outlet Type Total: 24 x NEMA 5-15R
Temperature (Operating / Storage) 0 – 50°C / -20 – 60°C
Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing
Package Contents
1x PE8324 eco PDU
1x Standard Rack Mount Kit
1x User Instructions
