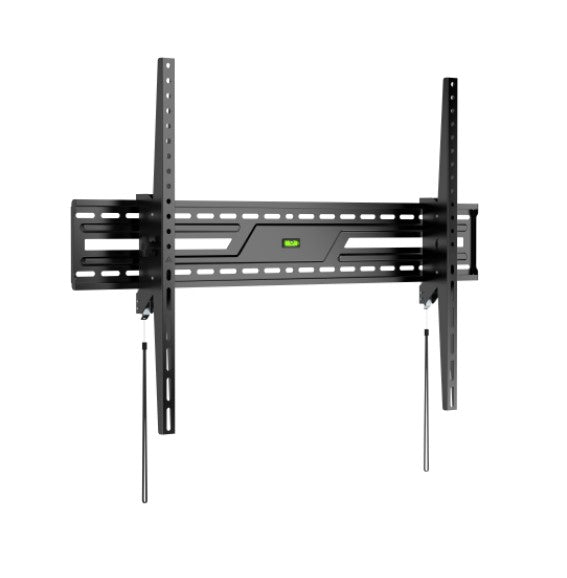

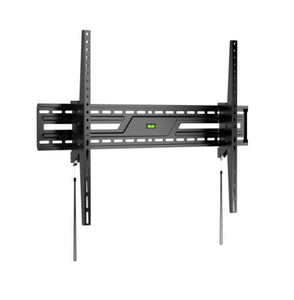

Brateck KL38-69T Large-Screen Large Tilt TV Wall Mount (new)
Brateck KL38-69T Large-Screen Large Tilt TV Wall Mount (new)
FEATURES
●Heavy-Duty Steel Construction: provides extra strength and durability
●Open Architecture: provides increased ventilation and easier access to wires
●Easy-Grip Knobs: for quick tilt and lock
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Integrated Bubble Level: assures alignment
SPECIFICATIONS
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.059" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black

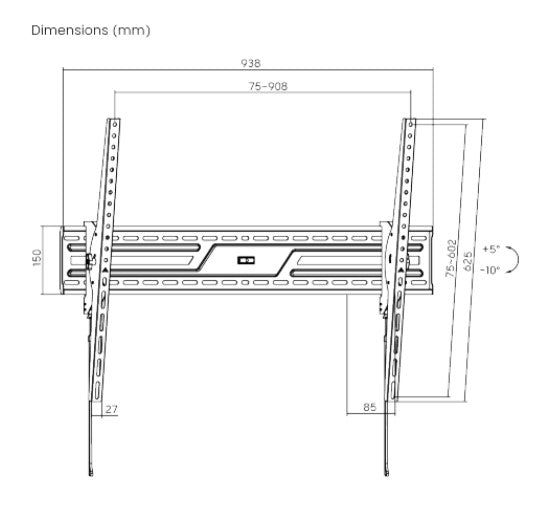

Dimensions: 85x938x625mm (3.3"x36.9"x24.6")
Fit Screen Size: 43"-100"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 75x75,100x100,100x200,200x100,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,500x300,400x400,600x300,500x400,400x600,600x400,700x400,800x400,850x400,600x600,800x500,800x600,900x600
Max. Mounting Hole: 908x602
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 85mm (3.3")
Tilt Range: +5°~-10°
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Direction Indicator: Yes
Cable Management: No
Anti-theft: No
Bubble Level: Built-in Bubble Level (Integrated on Wall Plate/VESA Panel)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Silk Screen: Can be silkscreen printed
