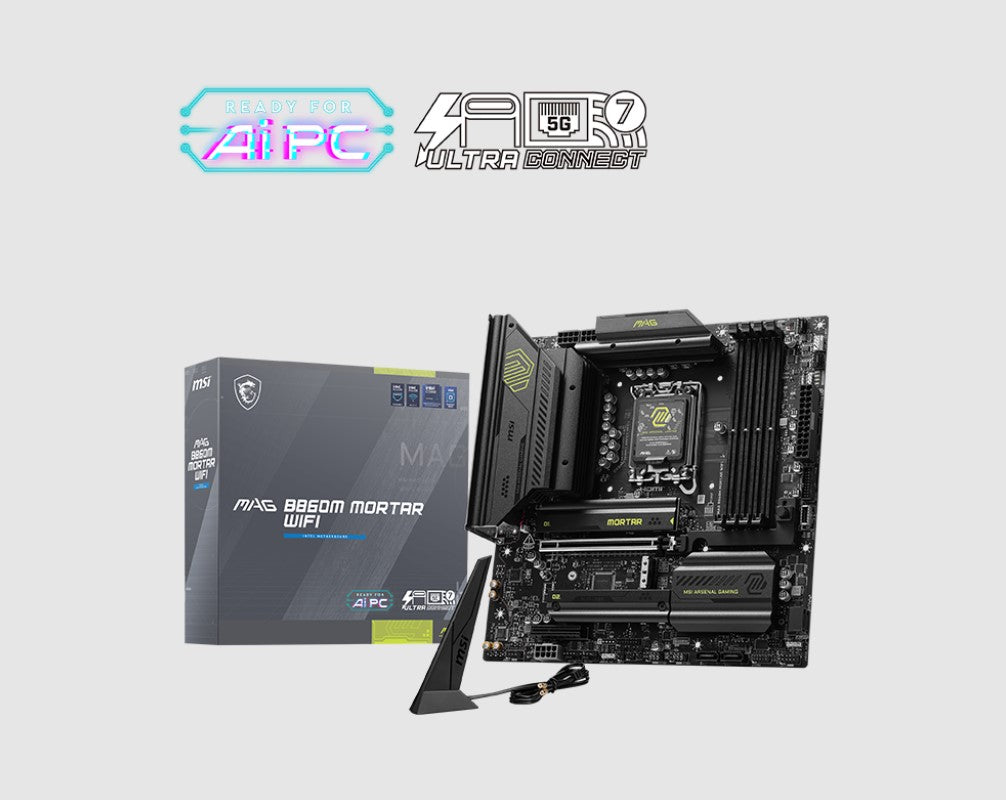

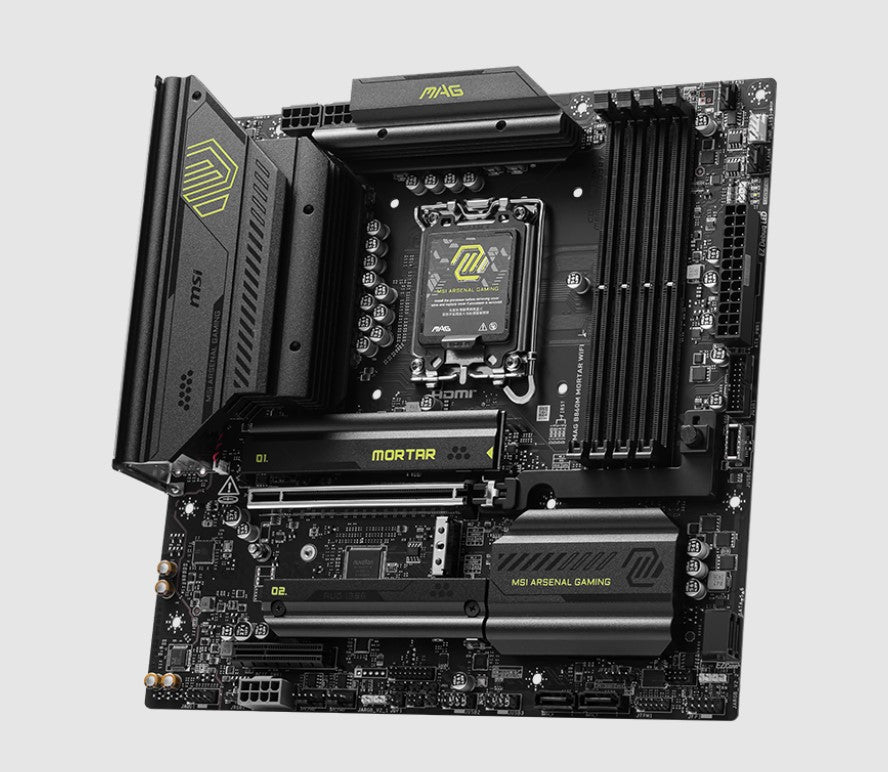

MSI MAG B860M MORTAR WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 1x PCI-E x16, 1x PCI-E x4, 3x M.2, 4x SATA 6G, 8x USB 2.0, Intel Killer BE1750x Wi-Fi 7
MSI MAG B860M MORTAR WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 1x PCI-E x16, 1x PCI-E x4, 3x M.2, 4x SATA 6G, 8x USB 2.0, Intel Killer BE1750x Wi-Fi 7
Chipset
INTEL B860
CPU
Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Onboard Graphics
1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz*/ **
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*/ **
1x Type-C DisplayPort
Slot
1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage
3x M.2
4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN
Intel® Killer™ E5000 5Gbps LAN
Onboard Thunderbolt
Thunderbolt Resource CPU
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

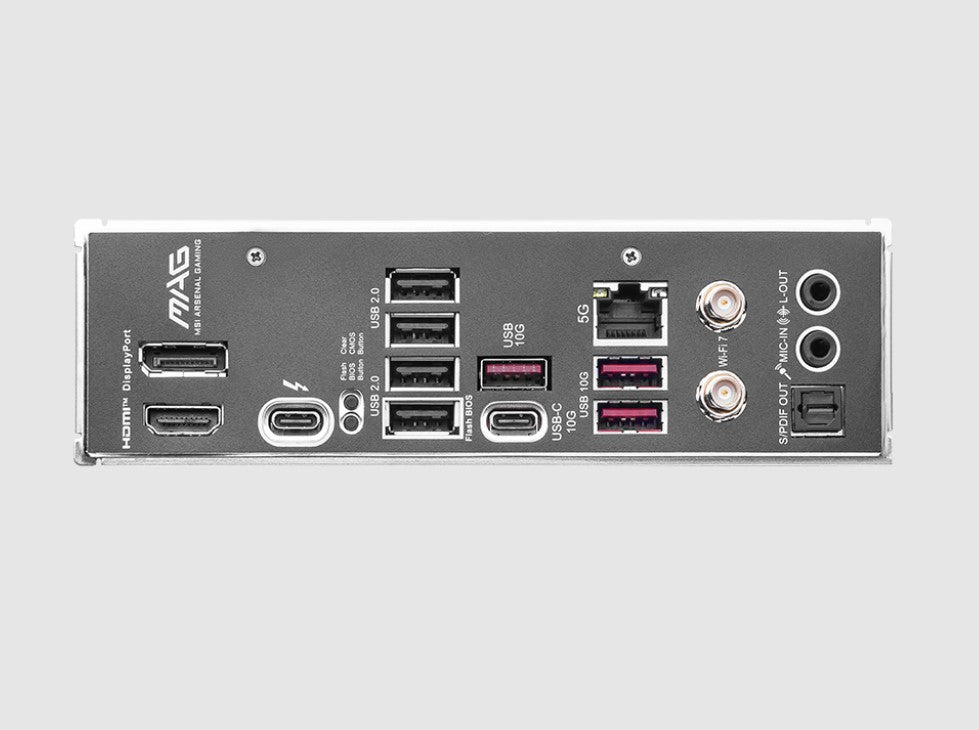

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7
OPERATING SYSTEM Support for Windows® 11 64-bit
PCB Info mATX
243.84mmx243.84mm
